Drainage Systems for Cages - get creative!

[Klyde O'Scope]

Okay so hear me out, im about to order a mistking set. Problem is i have glass floor in my enclosure, which makes drainage a problem but I was thinking of makin a false floor maybe 10-15cm up using a pvc board and drill loads of tiny holes into it, and then fill The space beneath it with those handened clay pebbles that absorb liquid, would this work?

First, why do you have a glass floor—are you using an upturned aquarium?
Second, tiny holes may not drain due to surface tension, capillarity, etc.
Third, what happens when the clay balls reach saturation?

With chameleon enclosures, you basically have 2 choices:

1. Mop up or wet-vac daily, or
2. Provide proper drainage.

What's the size of your enclosure? Another option is instead of a false floor, install a drain pan the size of the entire bottom, drain the water out the front (and into a bucket below), and tilt the pan slightly forward (½" at the back) to provide pitch.



[Pickle-cham]

It is possible to drill glass, i have done so to fit sumps to aquarium with bulkheads.



[Chamfam1987]

There are so many creative ways to create drainage systems for indoor cages to keep up with mistings and drippers. Post pictures and descriptions of what works for you here to share ideas!



[DaveF]

There is a company in the UK that make enclosures with their own trays only 1 I have come across sp far but don't know if they would ship to USA check them out muji chameleons



[Flick boy]

Yeah they are great I live in the uk have one . Someone is missing a trick in the states



[Pickle-cham]

There is a company in the UK that make enclosures with their own trays only 1 I have come across sp far but don't know if they would ship to USA check them out muji chameleons

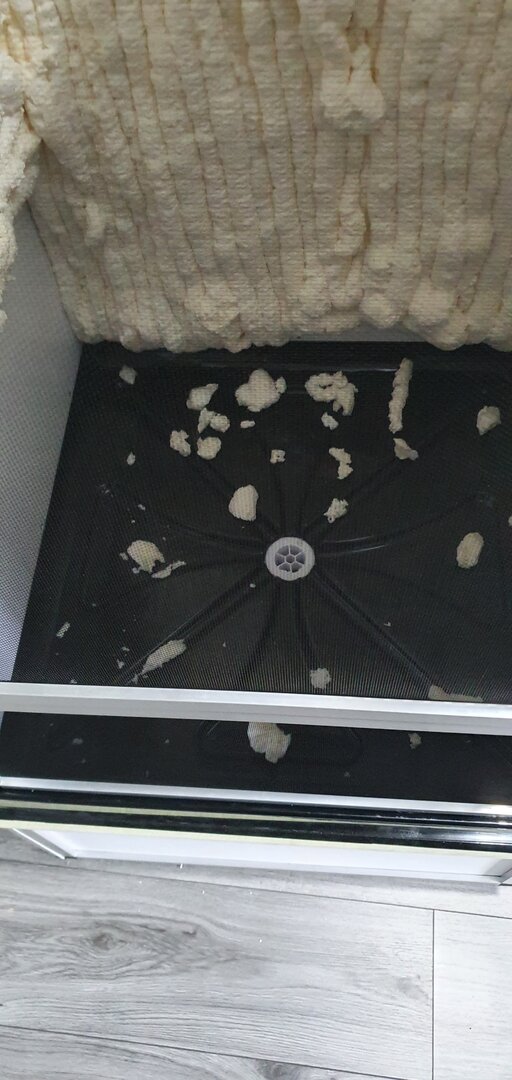

View attachment 298460

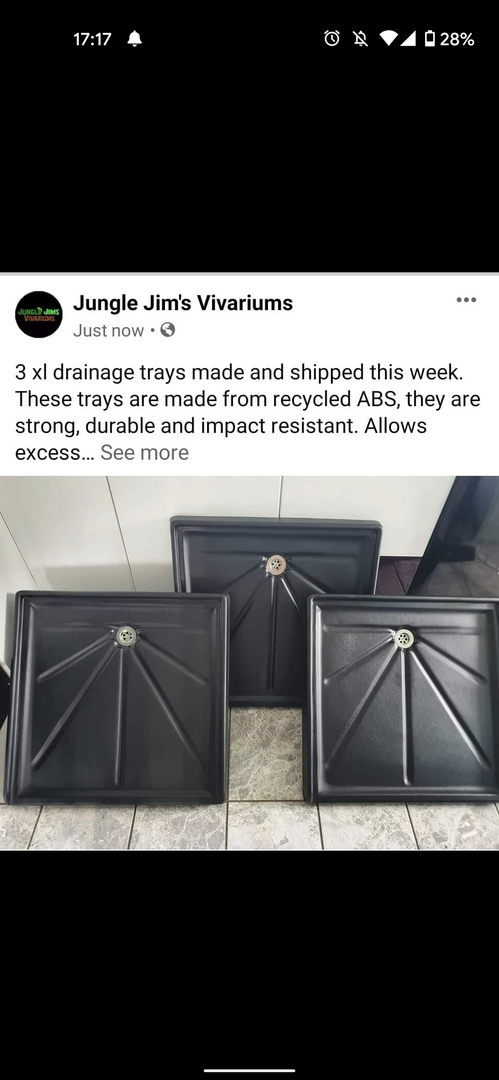

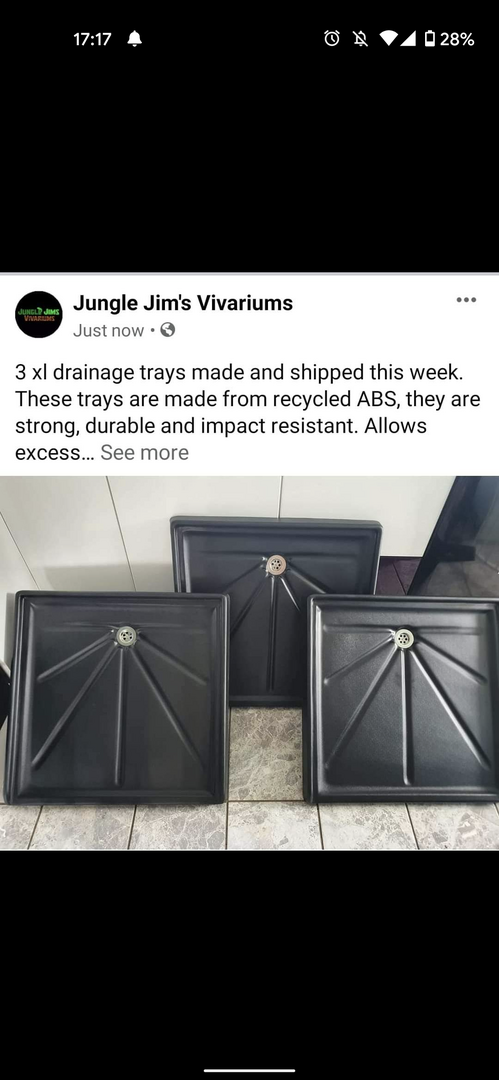

Another uk supplier

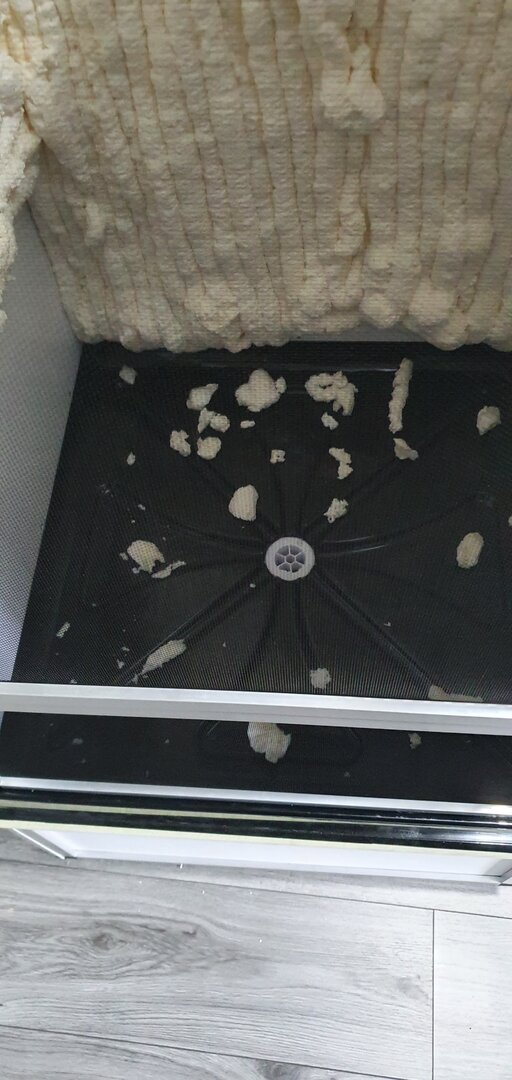

My diy drainage system still water tight 12 months on i should do a start up business. Could easily vacuum form thermo-plastic for this application



[Klyde O'Scope]

Somebody should make those (or something similar) here.



[Klyde O'Scope]

Chamfam1987​

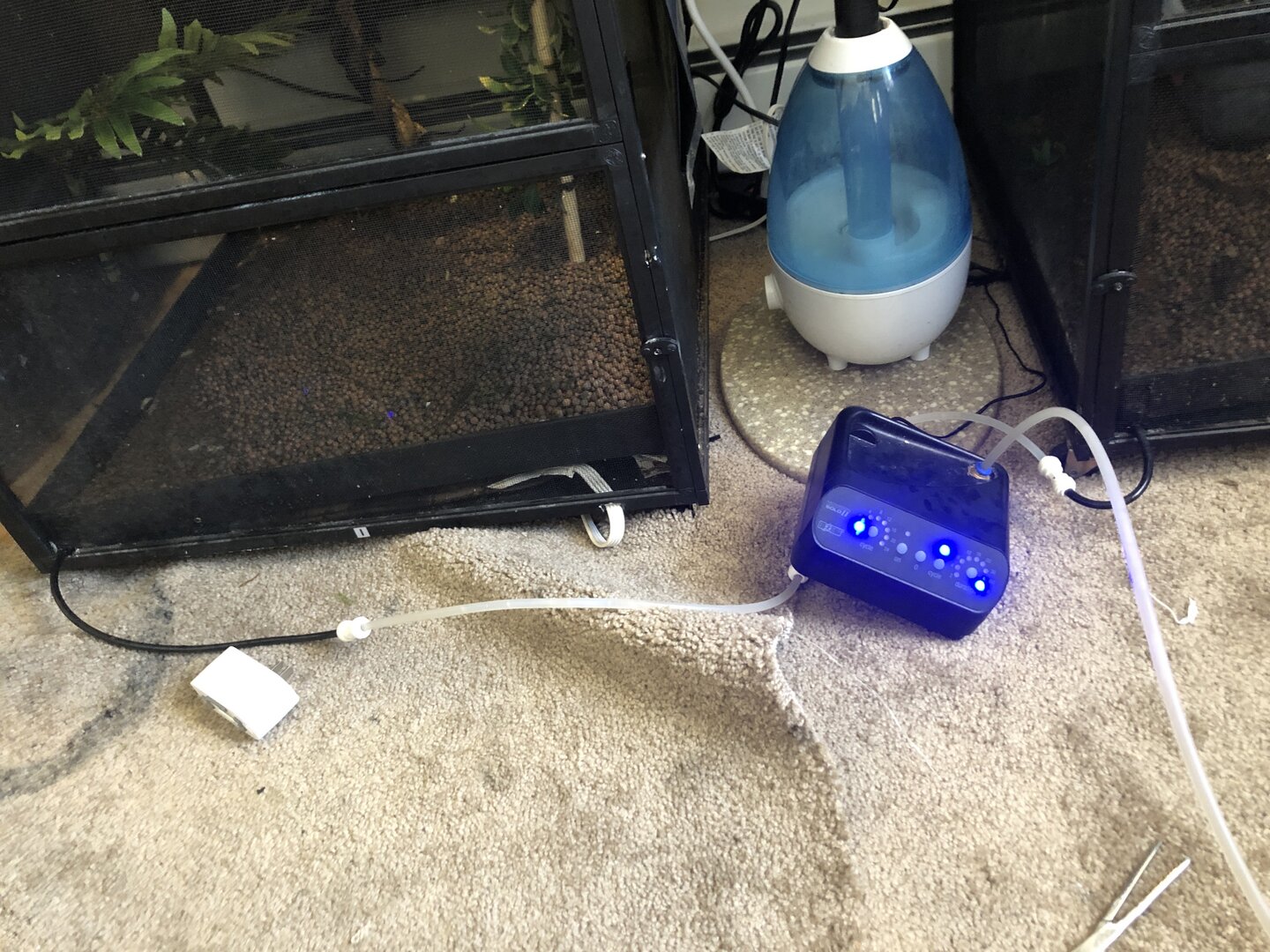

It'd be a good idea to get those enclosures up off the floor.

One of the most effective ways to give security to a chameleon is to arrange it so they can perch high up. If you are able to set their cage on a platform where their perch is at or, better, above eye level of the humans walking around, your chameleon will feel much more secure. Even with a perfect cage interior, resting the cage on the floor is the quickest way to have a nervous chameleon.
https://chameleonacademy.com/chameleon-cage-placement/



[Chamfam1987]

Chamfam1987​

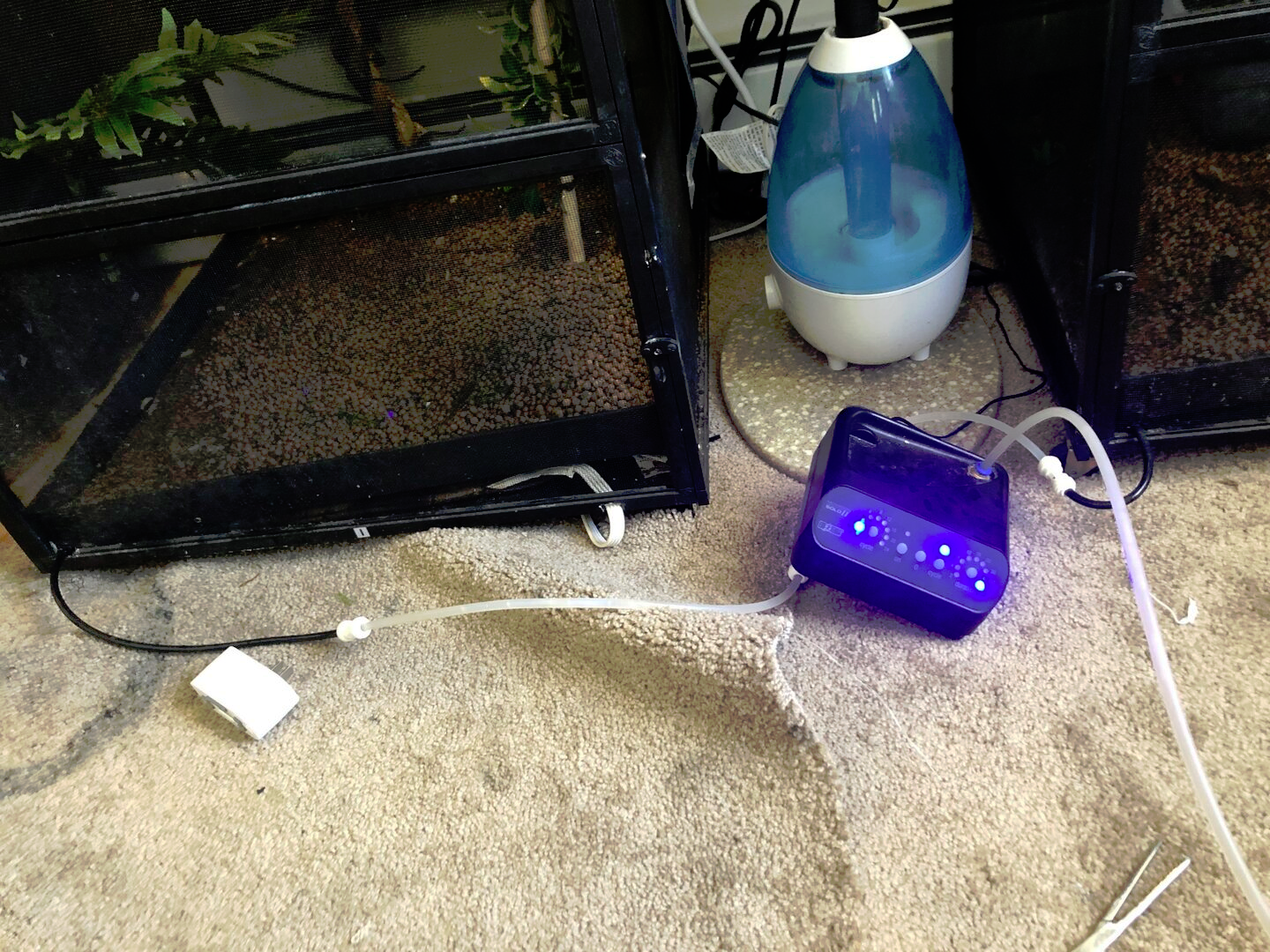

View attachment 298471

It'd be a good idea to get those enclosures up off the floor.

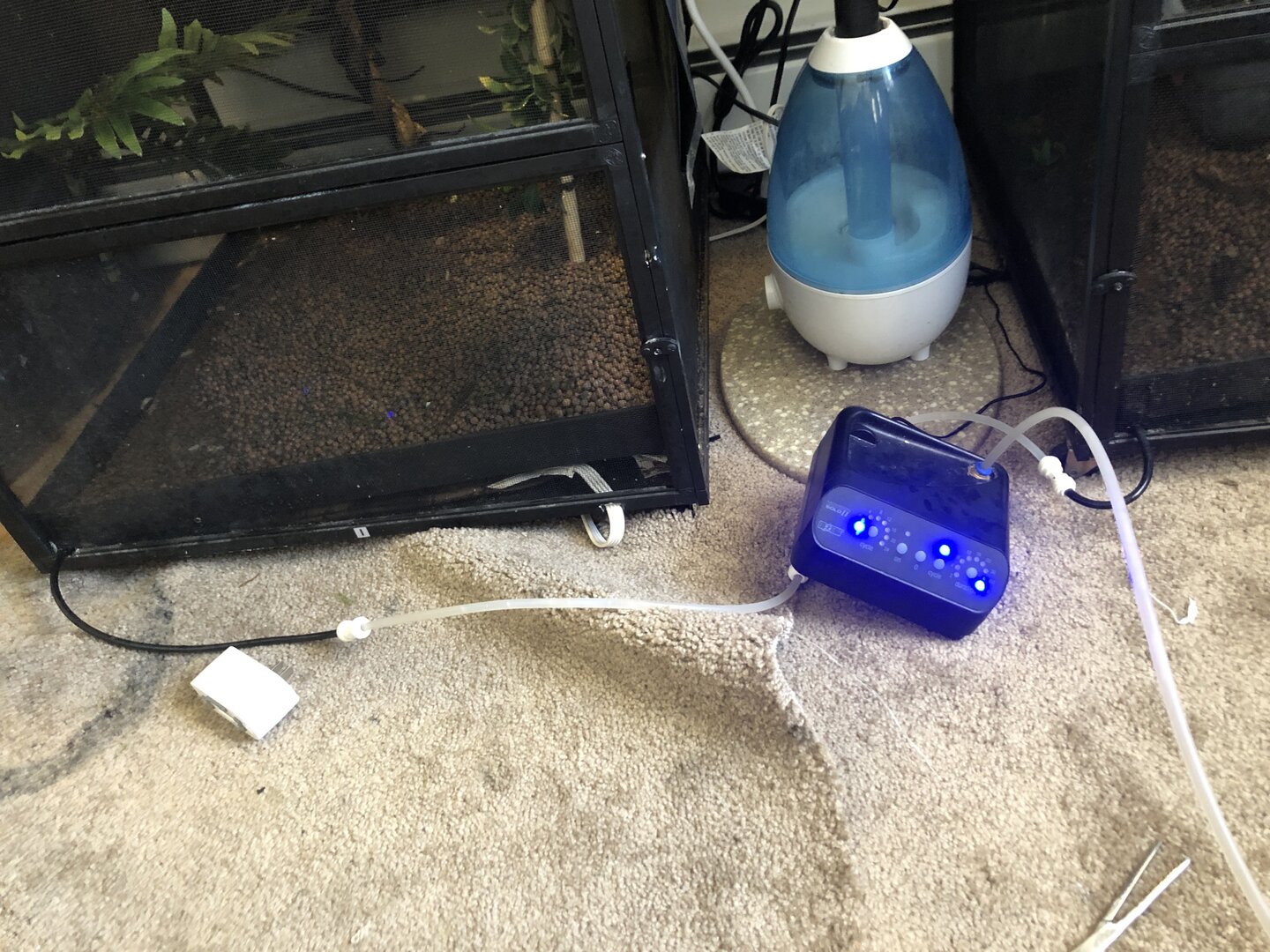

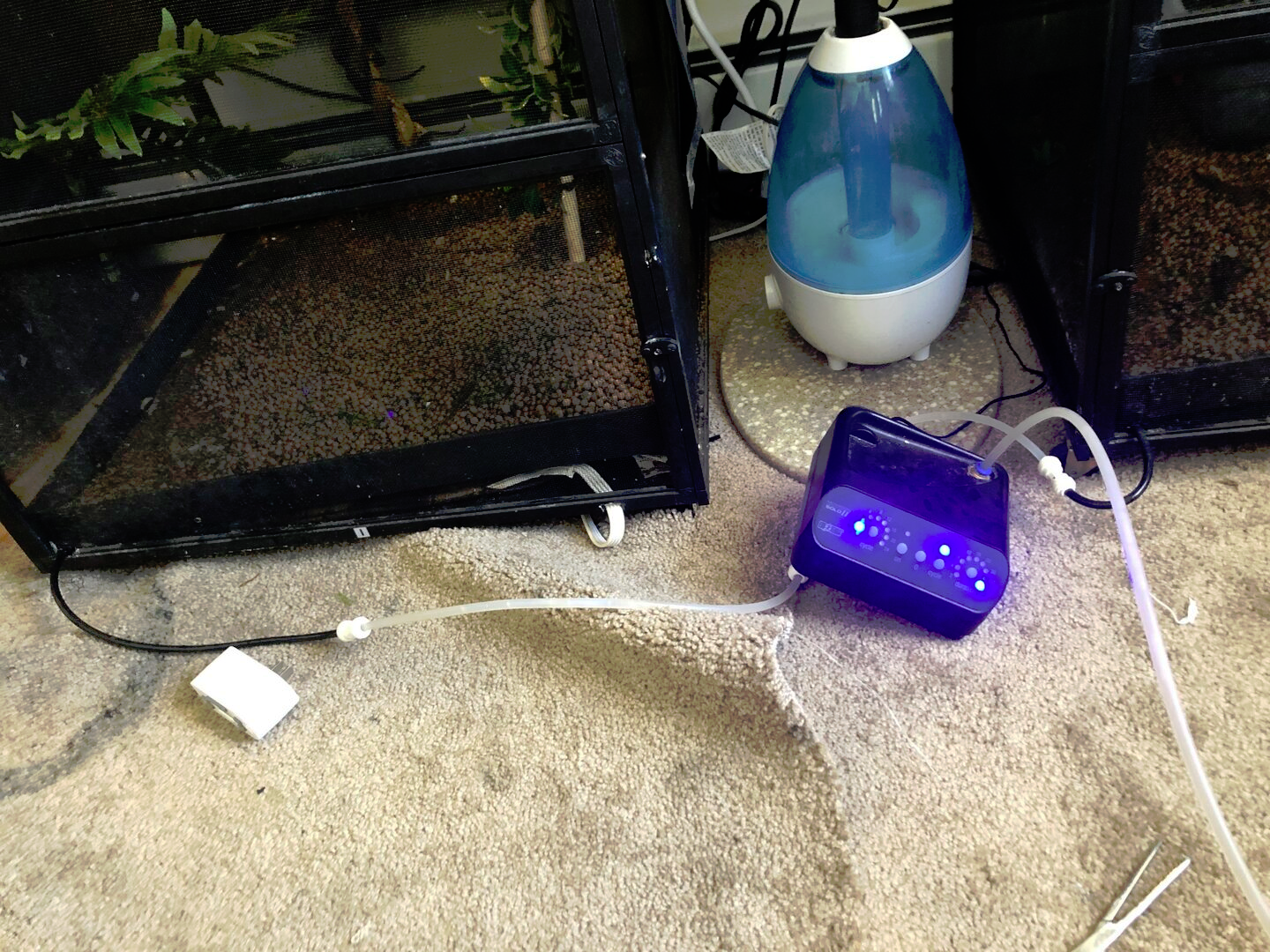

There on wheels I just moved into a new apartment and haven’t had a chance to put them up on stand yet



[Chamfam1987]

N wen I open cages those lizards come come out they love being handled they don’t scare easily except my new guy of two weeks I get the up high cage for the security feel but I have also lil to no traffic besides myself at cages



[narmstrong]

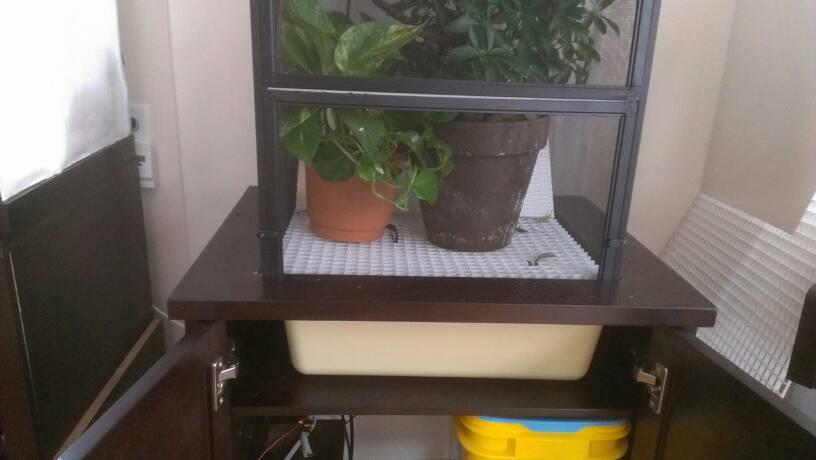

I purchased a pedestal sink cabinet from home depot to use as a stand and cut an 18 1/2" wide section out of the top, then braced two 1x2's across to hold the cage. I then replaced the acrylic bottom with two layers of fluorescent light diffusing grid. Directly below the cage is a cat litter box to catch water, urate, bugs, etc. It cams out pretty nice, actually!

Where did you find the light diffusing grid?



[Klyde O'Scope]

Where did you find the light diffusing grid?

That member hasn't been on since 2014, but you can find various kinds of light diffusers at the same home improvement chains. I use the same thing on my enclosure floor and up the walls for climbing vines & enrichment.

https://www.chameleonforums.com/threads/cage-floor.185403/#post-1708756



[D Newb]

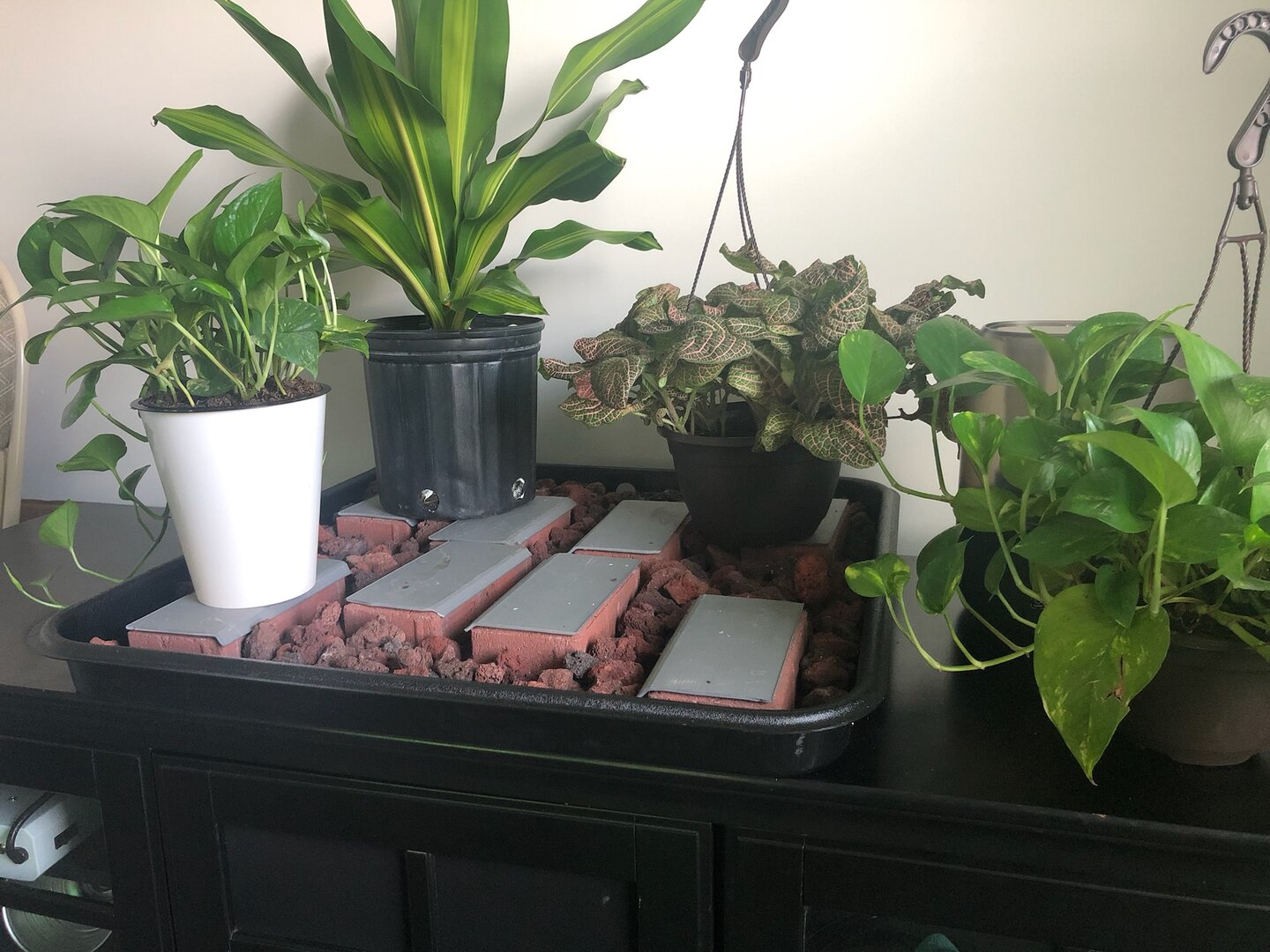

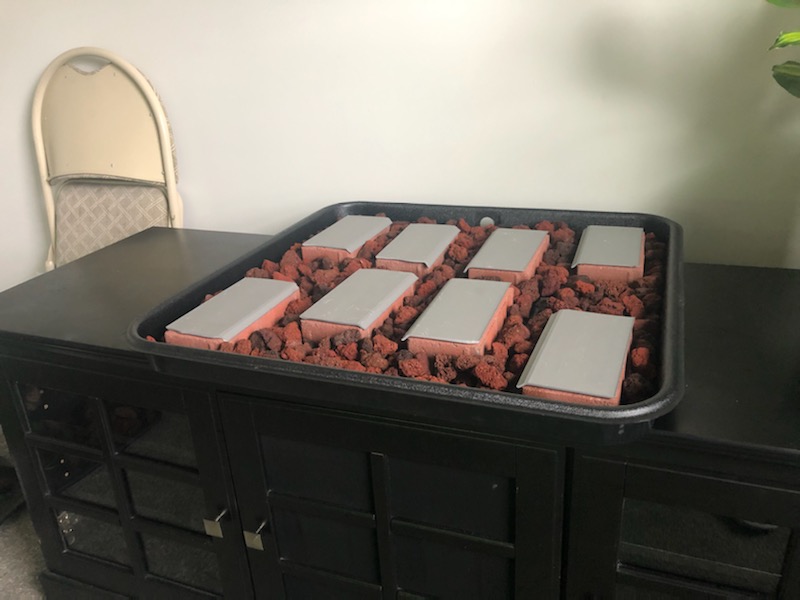

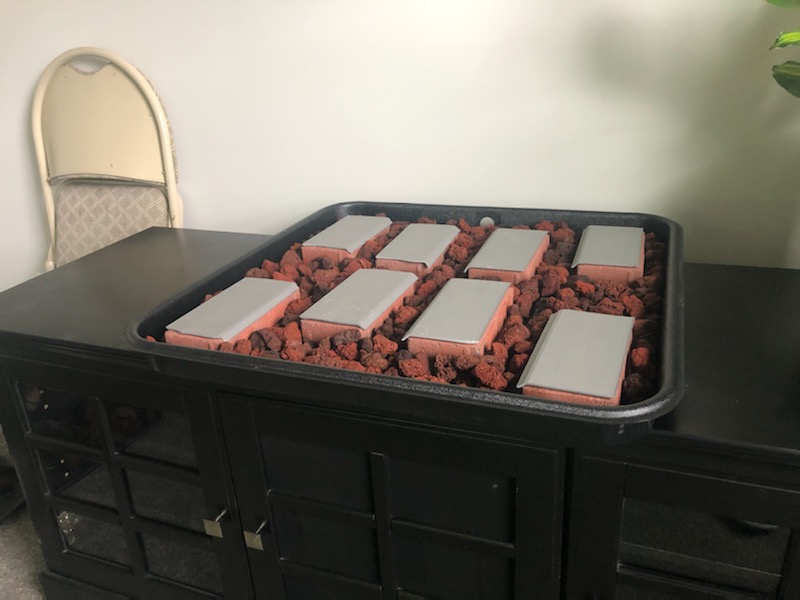

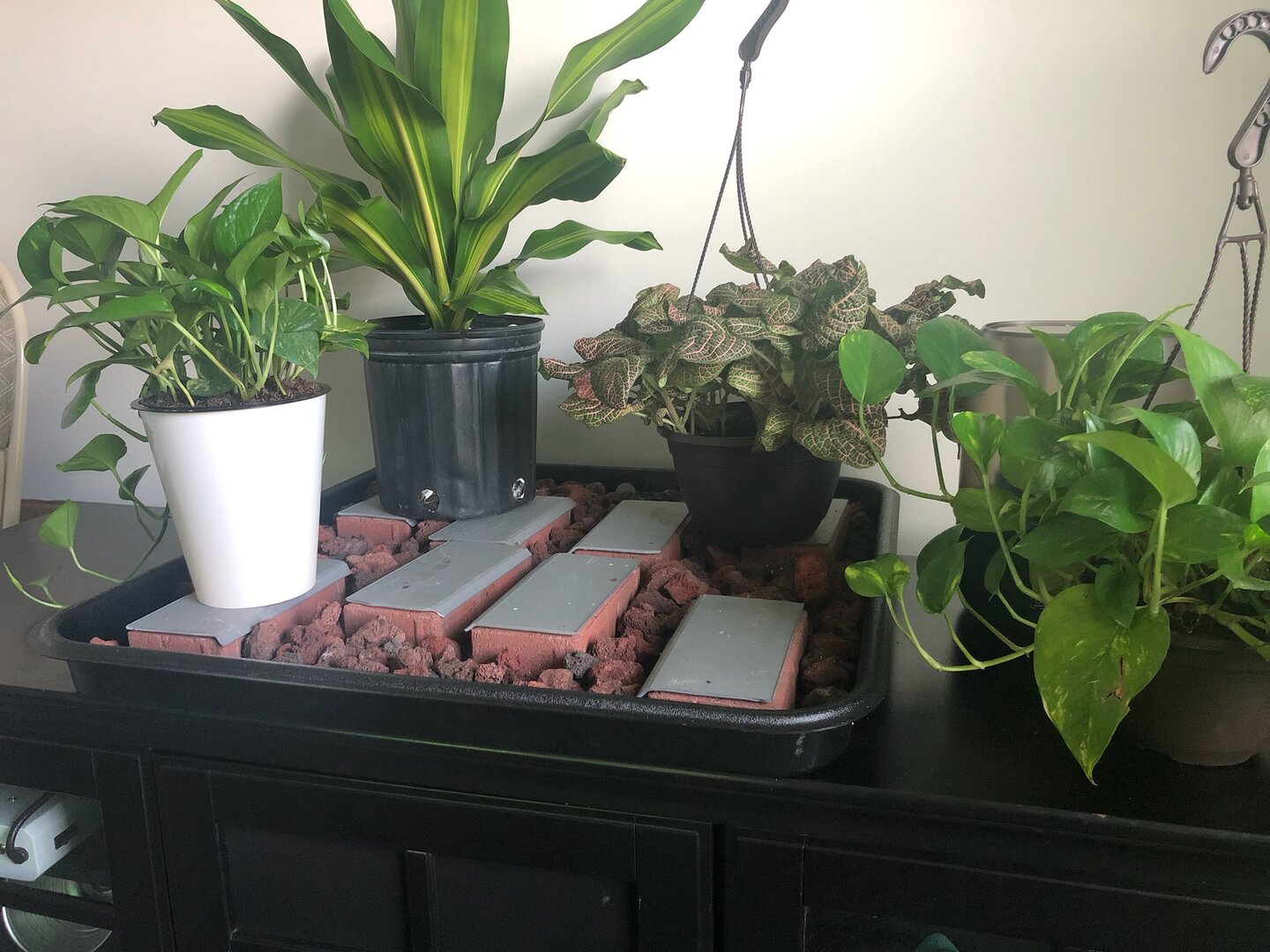

My DS hybrid cage is almost ready to ship and I set up my own drainage tray. I have a 3/4" pvc pipe for runoff to a bucket below. I put some rubber on the bricks to protect the aluminum and added lava rocks. I plan to use the solid floor that comes with the cage and have the ability to move the bricks around to support plants as needed.
The table is slightly elevated from the front to cause to water to drain to the rear where the plumbing is. I'm open to any and all critiques and suggestions. Thanks!



[Bamzeez]

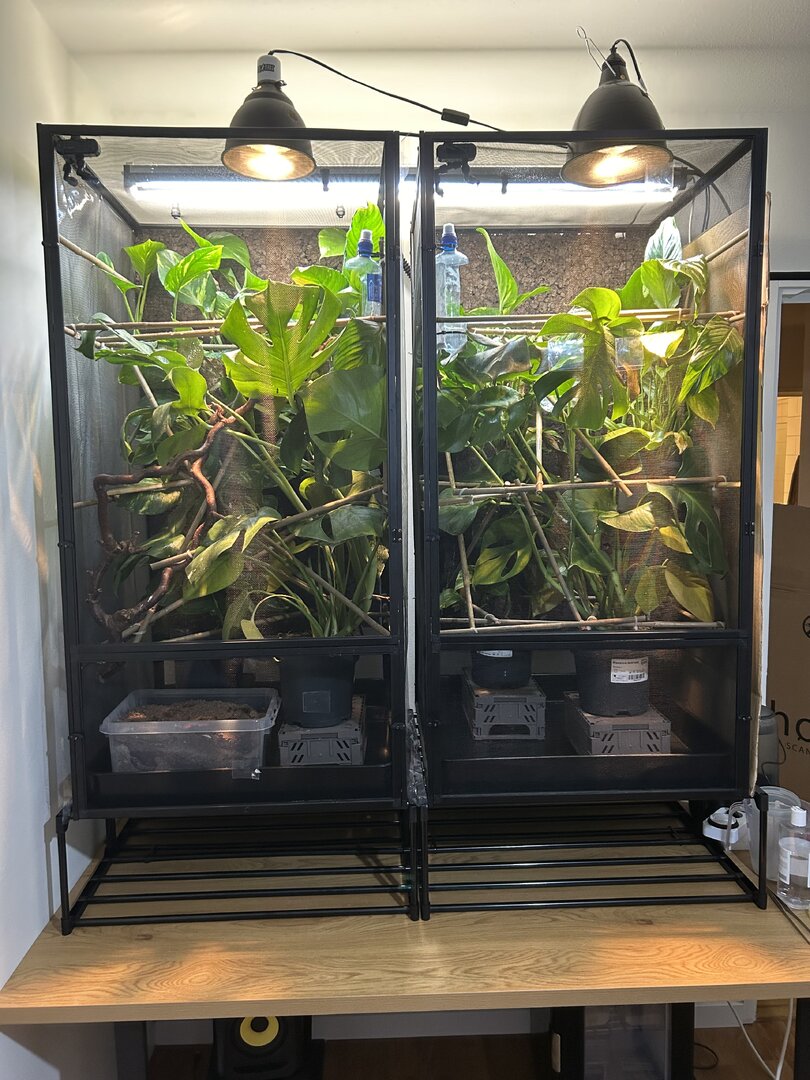

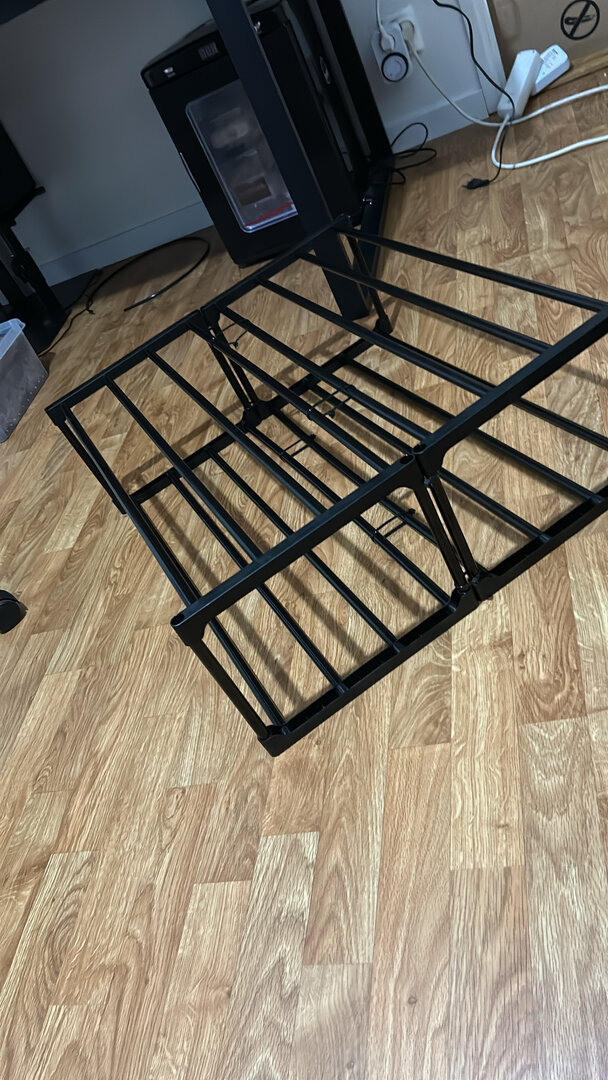

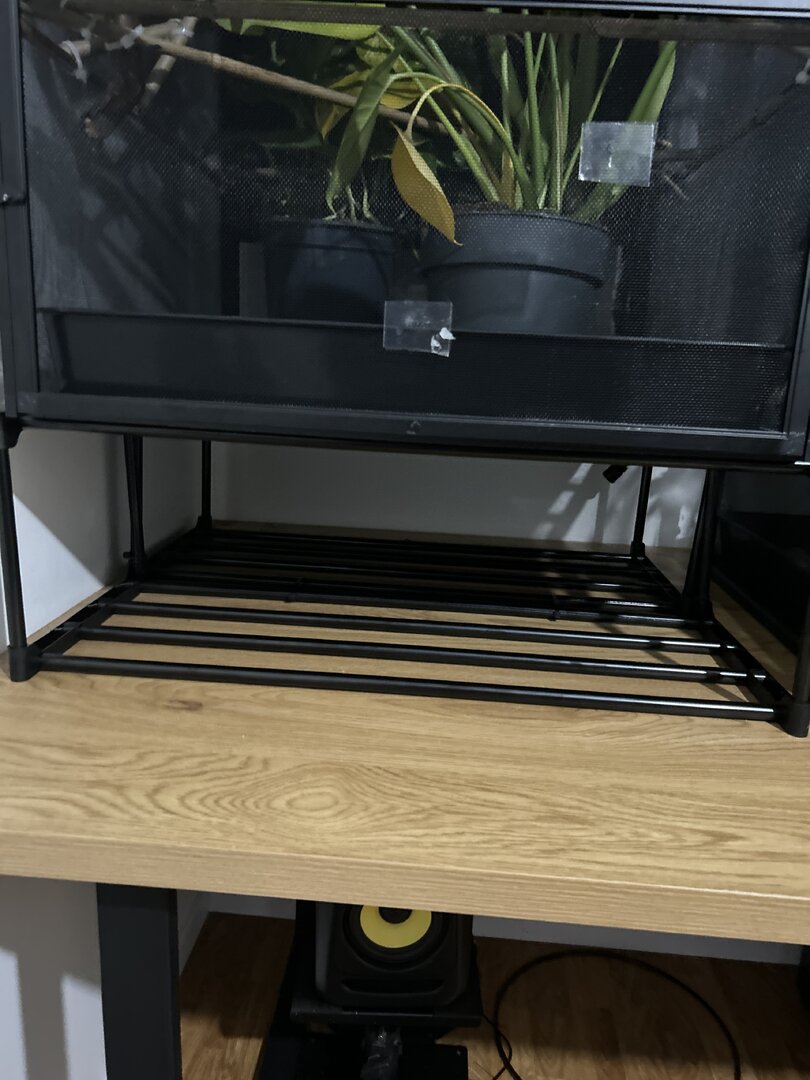

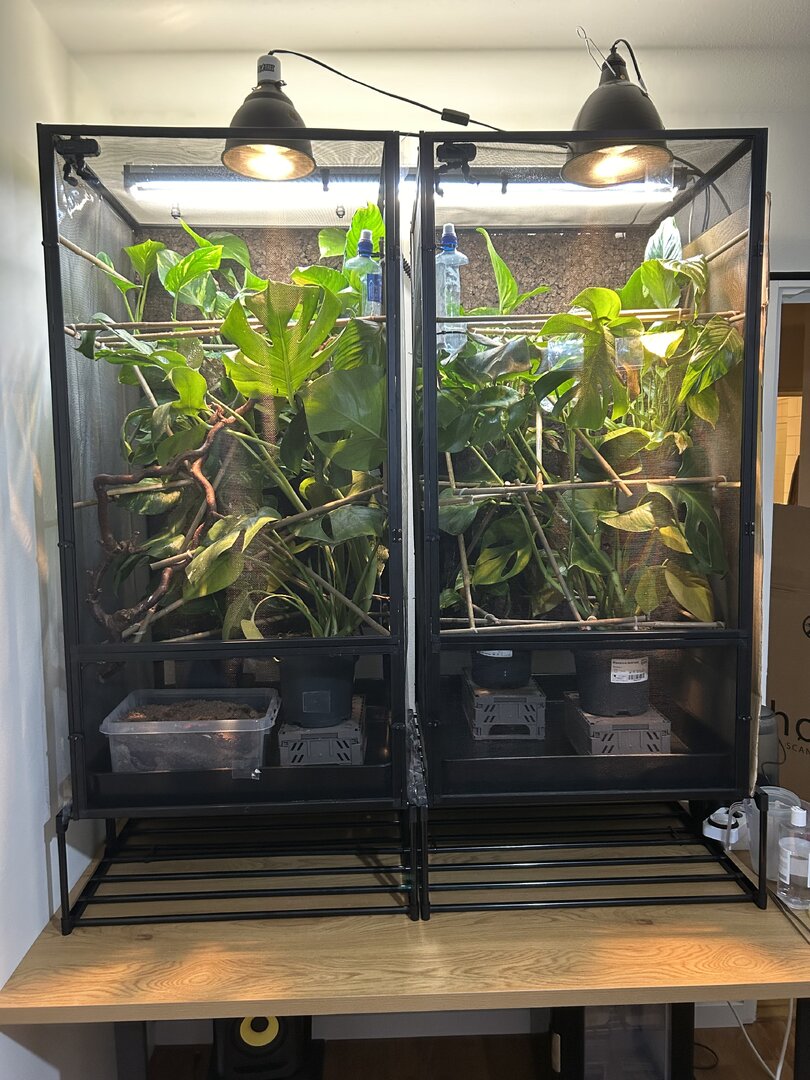

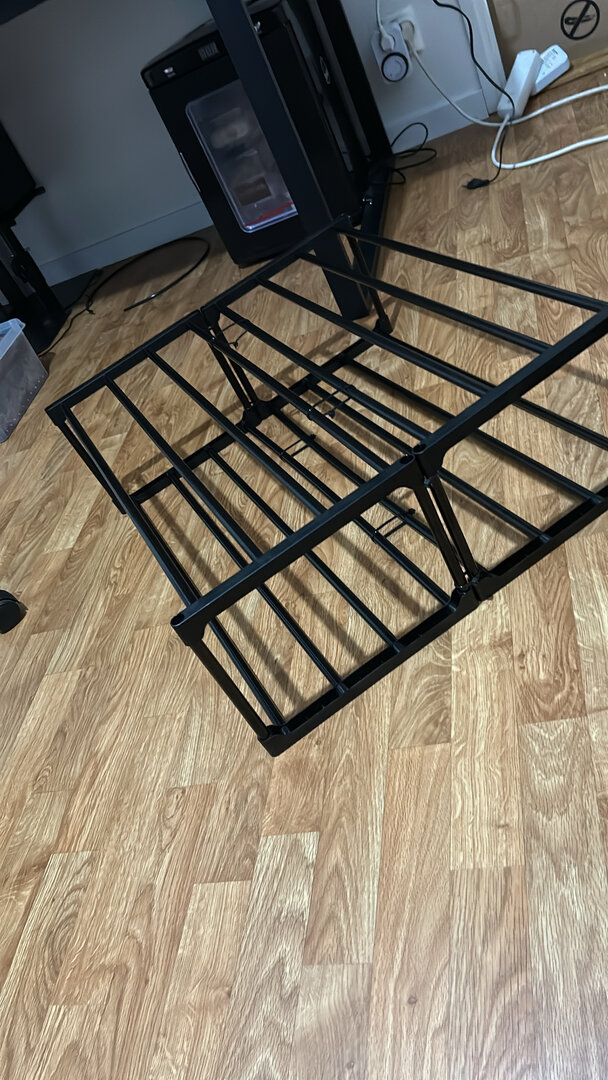

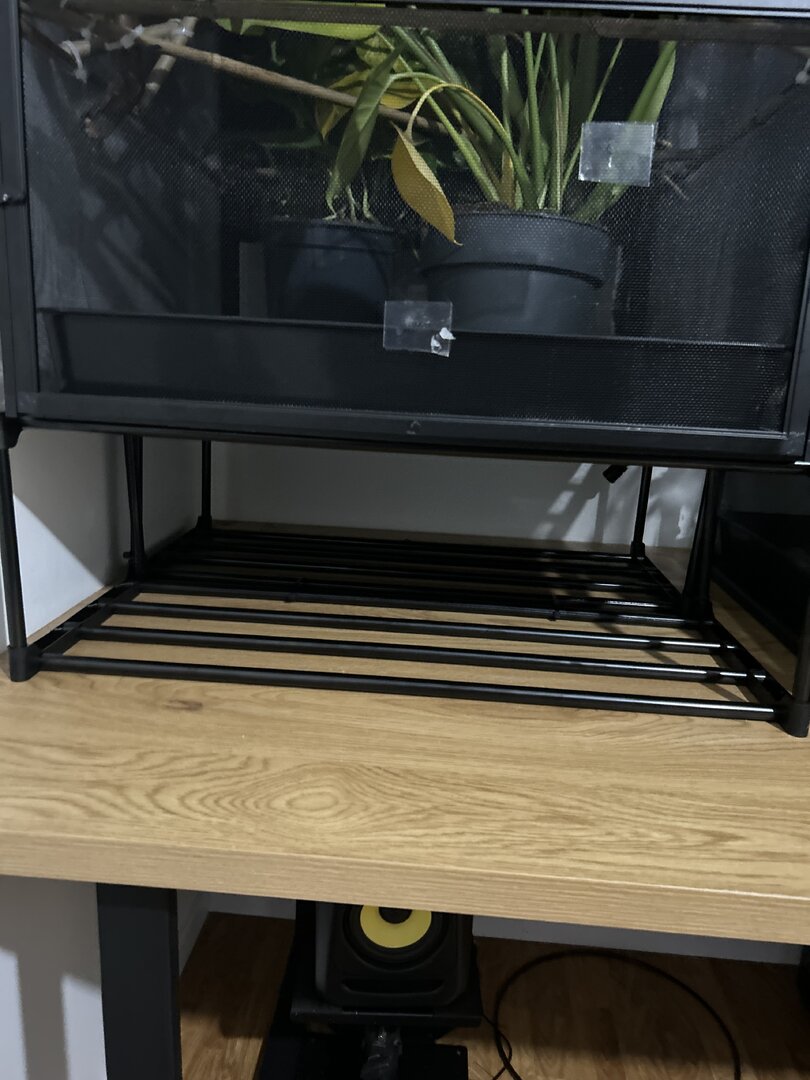

I made a verk simple and cheap solution to drainage , i bought 4 cheap shelves for shoes put them all in a square and ziptied them together, this way i can mount my two cages on the top shelf and have a bucket under to collect all water, i raised the plants up with upside down plastic crates with holes inside them so water can run through, drilled some Holes in the floor so the water can go down to the bucket, everything was about 20 bucks



[MissSkittles]

I made a verk simple and cheap solution to drainage , i bought 4 cheap shelves for shoes put them all in a square and ziptied them together, this way i can mount my two cages on the top shelf and have a bucket under to collect all water, i raised the plants up with upside down plastic crates with holes inside them so water can run through, drilled some Holes in the floor so the water can go down to the bucket, everything was about 20 bucks

And here’s the answer to the question I just asked.



[Bamzeez]

And here’s the answer to the question I just asked.

Haha just saw your question, yep just simple shoe shelves, just ziptie together and done,
