Finished my new buggo rack. I am not yet a Carpenter, but I am getting better .
Top to bottom it's made to fit.
2 - Acrylic 10"x 20"x 6" tubs (going to have to custom make these I think) Spanish Orange or Giant canyon Isopods, and Superworms/ Darkling Beetles.
2 - Zilla 18x18x20 terrariums. 1 for Ghosts, and 1 for Pinkwings.
2 - 10 gallon Aquariums (right now I only have 2, different brands, but all will be replaced with Zilla Critter Cages I think they are called) Snail's, Harley Quinn beetles.

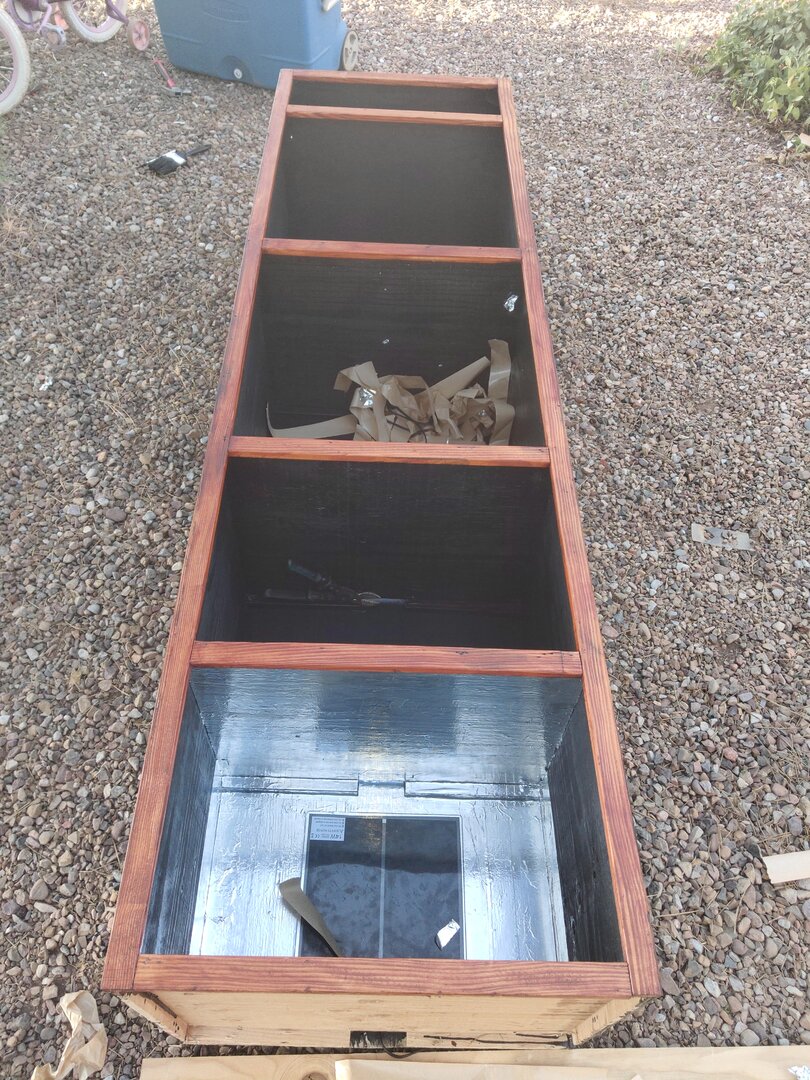

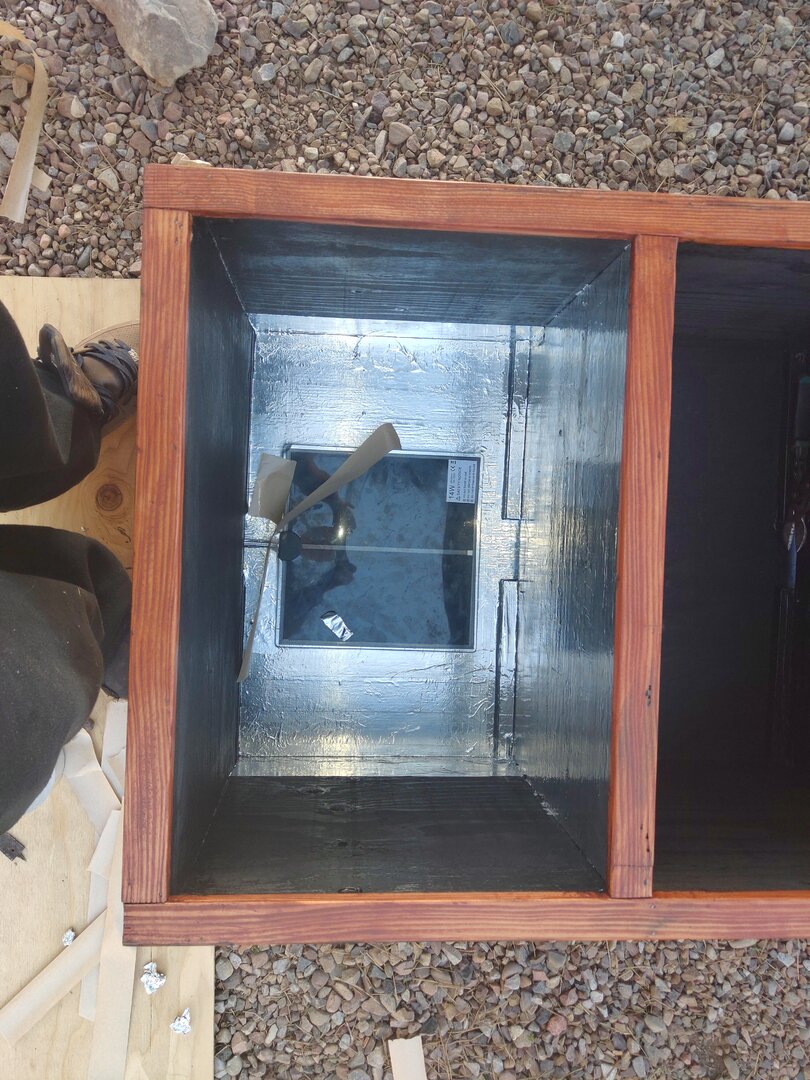

2 - 10 gallon Aquariums (again will be Zillas) this one, is heated with Heat Panel. There is Aluminum Foil tape, on the top above the Aquariums, on the back around the heat tape (not under it) and 3 inches on either side. This will help reflect the heat and optimize it's spread, I hope.
In the coming weeks, there is a few more upgrades to make. There will be a 1/4 inch line, which has holes running through every shelf, that will feed a mister nozzle (or 2) for every enclosure.
The Aquariums and Acrylics, will have there nozzle above them, mounted to the shelf above and spray through the screen. The Terrariums will be mounted inside. Each nozzle will be valved, to control flow into each enclosure.
Every shelf, will be lit, with 95cri 6000k LEDs, about 2000, lumens per shelf, on a TC420 programmable dimmer. They will all ramp up and down as the day goes. And may ramp differently on a per shelf basis, each shelf has is it's own channel.
All wiring for the LEDs and misters, run inside the enclosure, so that it can be screwed to the wall flush.

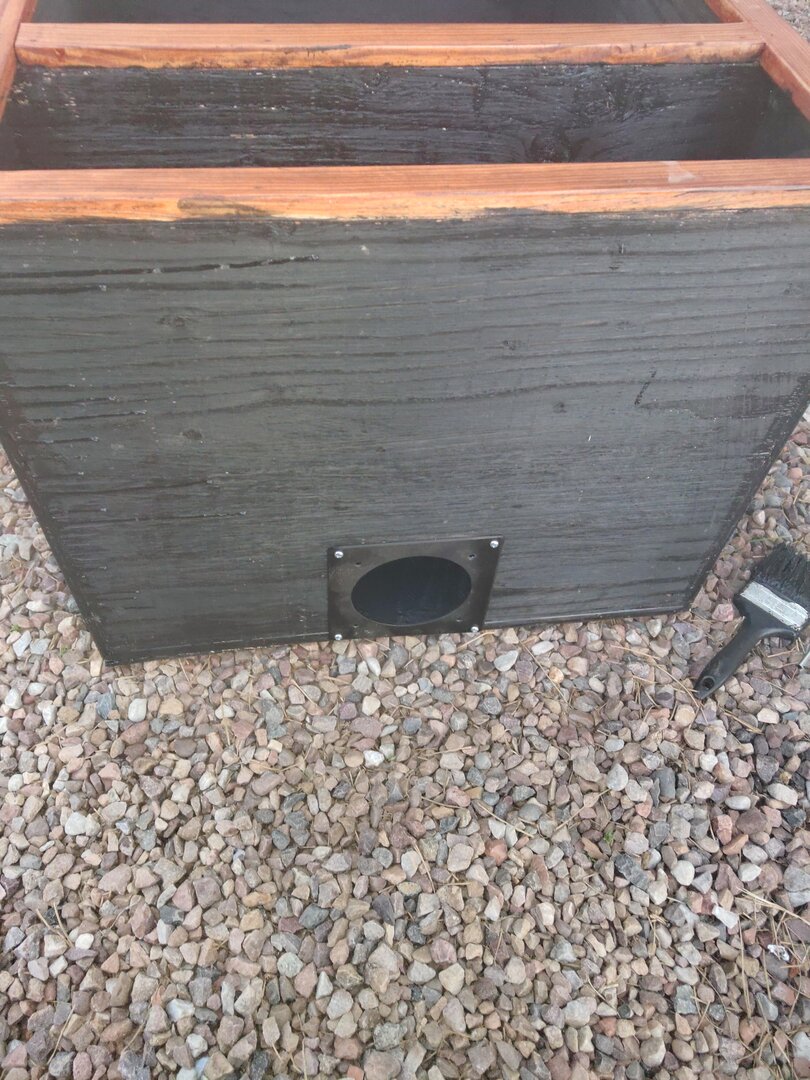

There is a 4inch by 3/4inch channel of opening between each shelf and the roof. And on the top, a 120mm fan, to pull air through the unit to help with ventilation.

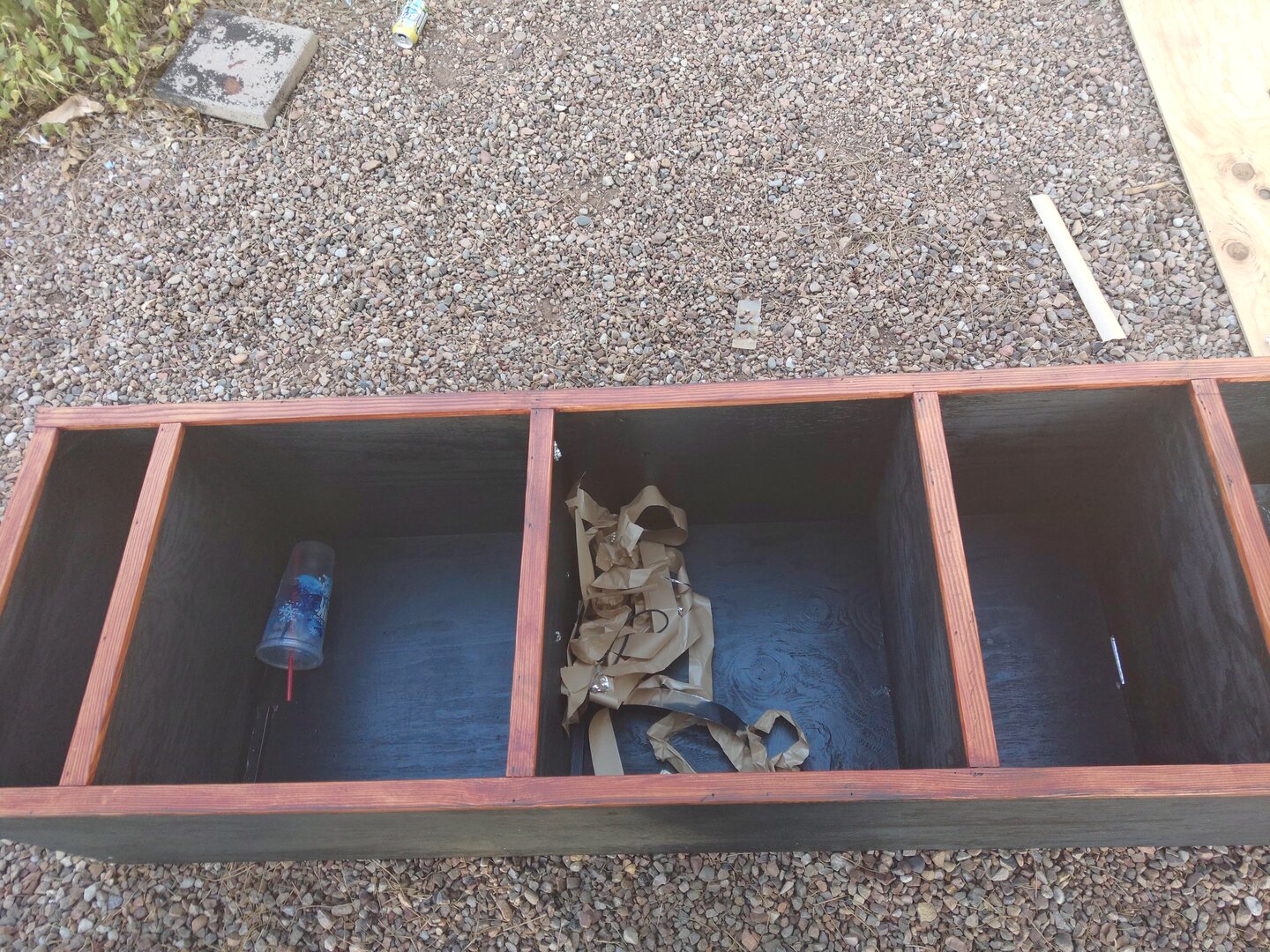

It stands 7 feet tall, 24in wide, and 20 inches deep. Made completely from 1/2, inch cabinet grade Douglas Fir, and Douglas Fir 1x2 Trim Boards. The face trim is stained "Natural Red" and the rest is "Satin Black" Krylon Color Max.
